Monteer 5000S Storm
GREAT OUTPUT DELIVERED
MONTEER 5000s storm
5000 LM | 265 M | IPX 5 | -20°C / 40°C
HOW TO USE IT?
LIGHT MODES
| MODE | BROGHTNESS | ECO | LOW | MID | HIGH | FLASH |
|---|---|---|---|---|---|---|
 |
 LUMENS |
100 | 500 | 1000 | 2000 | 0-1150 |
 h:min |
90:00 | 45:00 | 17:00 | 07:00 | 35:30 | |
|
LUMENS |
350 | 800 | 1600 | 3200 | 0-1600 |
|
h:min |
30:00 | 13:00 | 06:00 | 03:00 | 13:30 | |
|
LUMENS |
500 | 1250 | 2500 | 5000 | 0-2500 |
|
h:min |
28:00 | 09:30 | 04:30 | 02:00 | 09:30 |
*All data above are test results according to ANSI NEMA F1 1-2009 Standards.

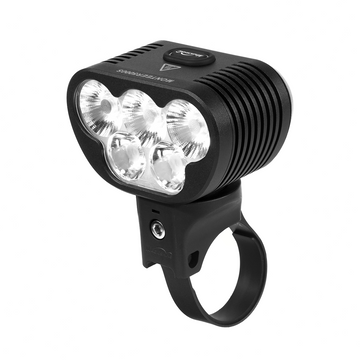

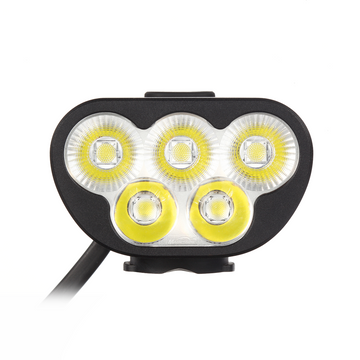

Utilizes 5 high-efficiency LEDs
The top 3 LEDs offer up to 3200 lumens of max output at 32 degrees beam spread, while the bottom 2 LEDs put out up to 2000 lumens of the spotlight with a more focused 21-degree spread. Each group of LEDs can be activated separately or together for a well-rounded beam pattern.
DIRECT BATTERY INDICATOR
The backlit control button will show green when the battery power is above 20%, red between 5-20% remaining, and flashing red at less than 5% remaining. Note: The light’s intensity mode will lock into the lowest setting when the power is 5% or less.
high-capacity Li-ion cells
MJ-6116C 7000mAh long-lasting rechargeable Li-ion battery with capacity gauge, works as a power bank.
IPX5 WATERPROOF
IPX5 rating meaning it can withstand heavy rain or snow. The aluminum alloy heat fins are engineered to offer top efficiency in transferring and dissipating heat build-up inside the light casing.
Technical Specifications
| Specifications | Parameter |
|---|---|
| Max Lumen | 5000 LM |
| Light Source | 5*Luminus SST-40 |
| Beam Angle | 32°/21° |
| Max Throw | 265 m |
| Runtime | 2-90 hrs |
| Suitable Handlebar | 28.6mm, 31.8mm, 35mm, aero bar |
| Beam Intensity | 17500 CD |
| Waterproof Rate | IPX5 |
| Battery Source | 4 x 18650 Li-ion battery 7.2V 7000mAh(Included) |
| Charger | Micro USB |
| Charging Time | 6.5hrs (5V/2A) |
| Weight | 122g / 4.30 oz (NOT Including battery) 409g / 14.42 oz (Including battery) |
| Dimensions | 64*43.5*45 mm / 2.52*1.67*1.77 in |
| Warranty | 1 year warranty for light head Half year for battery pack |
| Body Material | Aluminum alloy |
| Mounting System | Garmin style quarter turn mount |
What's in the Box?
MONTEER 5000S Light Head x 1
MJ-6116C battery pack x 1
Handlebar mount x 1
Silicon strap x 4
Micro USB cable x 1
3mm hex x 1
User Manual x 1(Manual Download Here)
